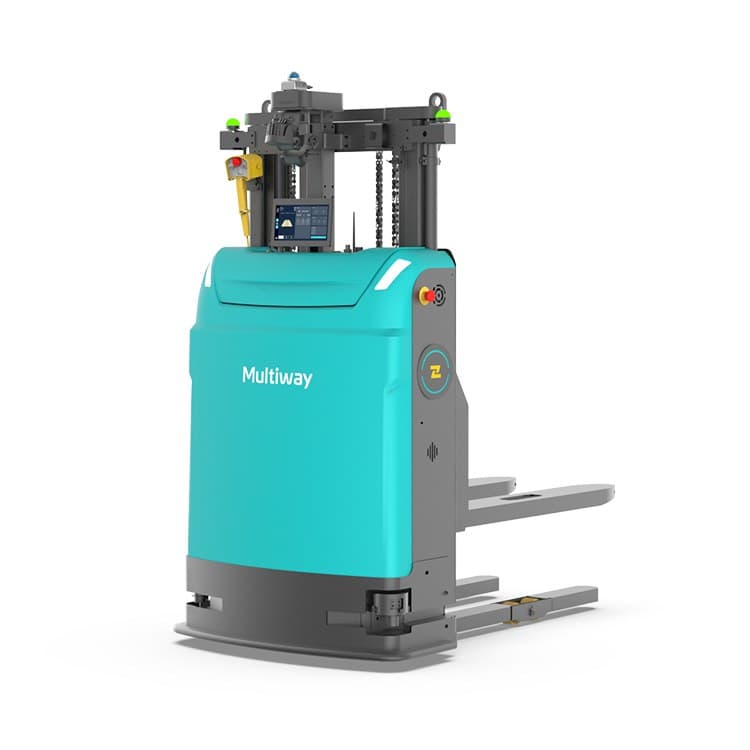

MW-SL14 Autonomous Pallet Stacker
Autonomous pallet stacker for driverless lifting up to 3.5 metres
The MW-SL14 is an autonomous (driverless) pallet stacker AGV built by Multiway Robotics, a manufacturer of autonomous material-handling forklifts with operations across China, the US, Germany, Korea and Japan. It is a self-driving industrial truck that lifts and stacks palletised loads without an onboard operator, aimed at warehouse and intralogistics automation.
1,400 kg rated load (1,000 kg at max height)
3,500 mm maximum lift height
Positioning precision plus or minus 10 mm
LiDAR navigation with stereo obstacle avoidance
200 Ah LFP battery, 6 to 8 h runtime
What it does
The MW-SL14 drives forward, reverses and turns autonomously to transport pallets and stack them to a maximum lift height of 3,500 mm, with a rated load of 1,400 kg (1,000 kg at full height). It navigates by LiDAR (with optional reflector support) and reaches stacking positions to a precision of plus or minus 10 mm. Stereo obstacle avoidance, a bottom obstacle-avoidance radar and fork-head anti-collision detection govern safe movement, while pallet pose identification and goods-presence detection confirm correct pickup; optional barcode/RFID reading supports inventory tracking. It runs on a 200 Ah lithium iron phosphate battery for roughly 6 to 8 hours and supports automatic or manual charging.
Where it's used
Multiway positions the MW-SL14 for warehouse automation, distribution centres and manufacturing facilities where palletised goods must be moved and stacked between floor level and elevated rack positions. Its compact 1,751 x 998 mm footprint and 1,184 mm turning radius suit narrower aisles and space-constrained layouts. Multiway has shown the platform operating in industrial settings such as the auto-parts sector.
Why operators choose it
Removes operators from repetitive stacking and pallet-transport tasks
Reaches 3,500 mm to serve elevated rack positions automatically
Plus or minus 10 mm placement precision reduces mis-stacks and rack damage
Compact footprint and 1,184 mm turning radius fit tighter aisles
6 to 8 hour LFP battery runtime with auto-charging for extended shifts
Specifications.
- Dimensions
- 1751 L × 998 W × 1940–2340 H
- Weight
- 930 kg
- Max Speed
- 1.38 m/s
- Payload
- 1400 kg (1000 kg at max lift height)
- Battery Capacity
- 200 Ah LiFePO4
- Runtime
- 6–8 h
- Charging Time
- 24V 100A charging pile
- Navigation & Sensors
- LiDAR (standard); Reflector (opt.); Stereo obstacle avoidance; Fork head anti-collision; Bottom obstacle avoidance
- Computing & AI
- Pallet pose identification; visual inventory; barcode/RFID (opt.)
- Connectivity
- Wi-Fi (standard); 5G (opt.); Optical communication (opt.)
- Additional Specs
- Max lift height: 3500 mm
- Turning radius: 1184 mm
- Positioning precision: ±10 mm
- Cross-groove: ≤30 mm
- Drive: forward/reverse/turn
- Anti-collision strip
- Emergency stop
- HMI
- Sound & light warning
- Goods presence detection
- On-fork goods appearance detection (opt.)
Specifications sourced from the manufacturer. View official product page. Variant-specific figures may apply; contact us to confirm the exact configuration.
